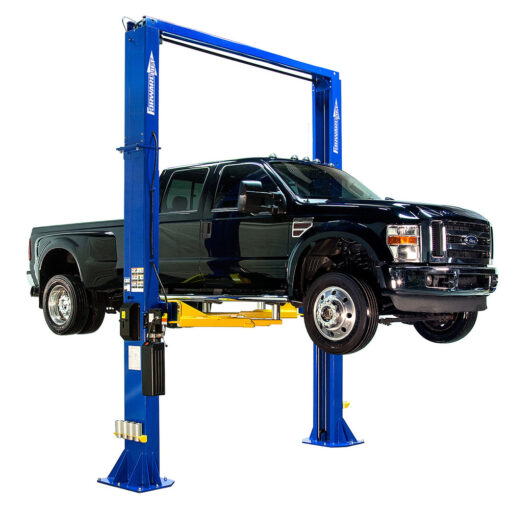

Forward lift dp18 18,000lb ali certified two-post lift
Sale!57%
Original price was: $7,399.00.$3,199.00Current price is: $3,199.00.
This item: Forward lift dp18 18,000lb ali certified two-post lift
Original price was: $7,399.00.$3,199.00Current price is: $3,199.00.
Original price was: $7,399.00.$3,199.00Current price is: $3,199.00.
Original price was: $5,999.00.$1,799.00Current price is: $1,799.00.
Original price was: $8,999.00.$2,890.00Current price is: $2,890.00.
Original price was: $3,990.00.$1,599.00Current price is: $1,599.00.
Original price was: $2,345.00.$970.00Current price is: $970.00.
Guaranteed safe & secure checkout
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
10-21 DAY DELIVERY
Jul 19 Jul 26
Description
Reviews (0)
DP18 Heavy Duty Two-Post Lift Features:
The DP18 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start working on work trucks, vans, or small buses along with everything else that rolls through the door.
Truck Adapter Extensions:
The DP18 comes with eight high strength aircraft grade aluminum truck adapter extensions. Four 5” and four 10” adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.
Arms: Forward’s heavy-duty two-post DP18 has two-stage arms that can easily be extended and retracted while lying on the floor spotting a vehicle. Couple that with the light adapter extensions and you win the spotting large vehicle battle!
2-STAGE ARMS with heavy-duty reinforced gusseting
- Extended and retracted from 61” to 38”
- 5 1/2” minimum adapter height from floor
Extended Height Model Options:
The DP18 offers three different height options, for the lowest ceiling option DP18N000 the overhead cross member mounts directly to the column without a column extension to fit a 155 ¾” (12’-11 ¾”) ceiling height. The standard height DP18N001 fits a 176” (14’-8”) ceiling height and the extended height DP18N002 fits a 200” (16’-8”) ceiling height. With all these options it’s easy to choose the best package to fit into your existing shop.
Additional Features:
- 18,000 lbs. capacity for lifting most trucks and vans.
- Features symmetrical column design
- Direct-Pull Lifting – high efficiency, low maintenance technology
- Closed loop hydraulic system – protect against hydraulic contamination
- Powder coat paint is more durable than conventional coatings
- Third party tested and certified by ALI
- Padded shut-off bar
- Low profile arms and truck adapters
- Single point release lock at operations center
Specifications
| Specifications | DP18N000BL DP18N000RD |
DP18N001BL DP18N001RD |
DP18N002BL DP18N002RD |
|||
| Column Extensions | No Extensions | Standard Height | Extended Height | |||
| Arm Type | 2 Stage | 2 Stage | 2 Stage | |||
| Total Capacity | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | |||
| Rise* | 83-1/4” (2114mm) | 83-1/4” (2114mm) | 83-1/4” (2114mm) | |||
| Overall Height | 154-3/4” (3930mm) | 175″ (4445mm) | 199” (5054mm) | |||
| Height to Shut-Off | 147-1/4” (3735mm) | 167-1/4″ (4250mm) | 191-1/4” (4860mm) | |||
| Minimum Ceiling Height | 155-3/4” (3956mm) | 176″ (4470mm) | 200” (5080mm) | |||
| Overall Floor Width | 154-3/8” (3921mm) | 154-3/8” (3921mm) | 154-3/8” (3921mm) | |||
| Inside Column Width | 119-5/8” (3038mm) | 119-5/8” (3038mm) | 119-5/8” (3038mm) | |||
| Drive Through | 108-1/4” (2749mm) | 108-1/4″ (2750mm) | 108-1/4″ (2750mm) | |||
| Arm Reach | 38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
|||
| Minimum Adapter Height | 5-1/2” (139mm) | 5-1/2” (139mm) | 5-1/2” (139mm) | |||
| Stackable Adapter Height (Low Extension) |
10-1/2” (266mm) | 10-1/2″ (266mm) | 10-1/2″ (266mm) | |||
| Stackable Adapter Height (High Extension) |
15-1/2” (393mm) | 15-1/2″ (393mm) | 15-1/2″ (393mm) | |||
| Voltage* | 208/230v, 20 amps | 208/230v, 20 amps | 208/230v, 20 amps | |||
| Amps | 20 | 20 | 20 | |||
| Motor | 2 HP/1Ø | 2 HP/1Ø | 2 HP/1Ø | |||
| * Specifications subject to change without notice or liability. *Maximum lifting height with 10” adapters * 1Ø, 3Ø, and 3Ø 600V available via special order – restrictions apply |
||||||
