ATLAS BP12000X 12,000 LB COMMERCIAL GRADE BASEPLATE LIFT ALI certified
Sale!60%
Original price was: $3,990.00.$1,599.00Current price is: $1,599.00.
This item: ATLAS BP12000X 12,000 LB COMMERCIAL GRADE BASEPLATE LIFT ALI certified
Original price was: $3,990.00.$1,599.00Current price is: $1,599.00.
Original price was: $3,990.00.$1,599.00Current price is: $1,599.00.
Original price was: $2,345.00.$970.00Current price is: $970.00.
Original price was: $17,395.37.$5,218.61Current price is: $5,218.61.
Original price was: $4,470.00.$2,190.00Current price is: $2,190.00.
1 × ATLAS 9OHSC 9,000 LB OVERHEAD 2-POST LIFT
3 in stock
Original price was: $2,900.00.$1,440.00Current price is: $1,440.00.
Guaranteed safe & secure checkout
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
10-21 DAY DELIVERY
Jul 19 Jul 26
Description
Reviews (0)

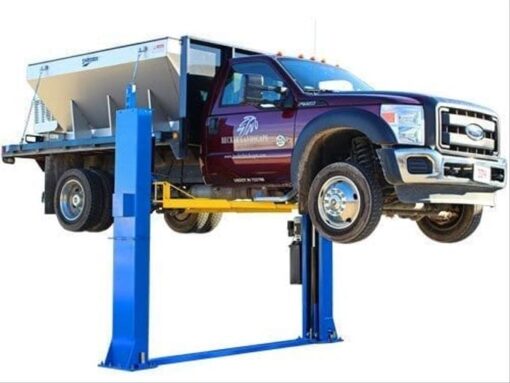

The Atlas® BP12000X is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas® BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.
12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 122 1/2″ (10′ 2 1/2″)
Adjustable Width
3-Stage Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
Free 12 piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 2,130 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas® ATTD-BP12000X Specifications
Capacity
12,000 LB.

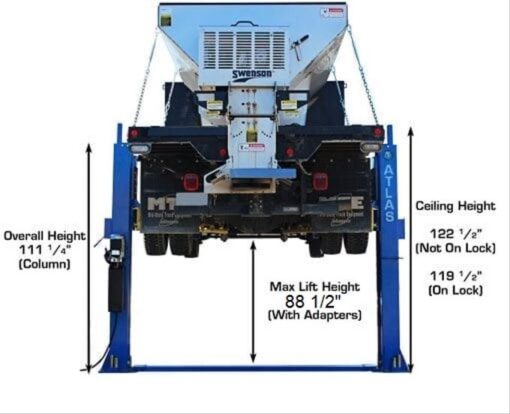

Overall Height
122 1/2″ (10’ 2 1/2″)

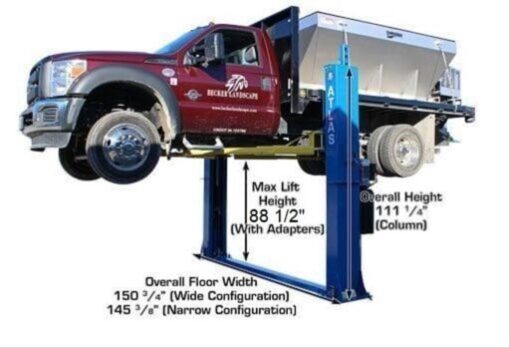

Overall Floor Width
149 3/8″ (12’ 5 3/8″) or 154 1/2” (12’ 10 1/2”)

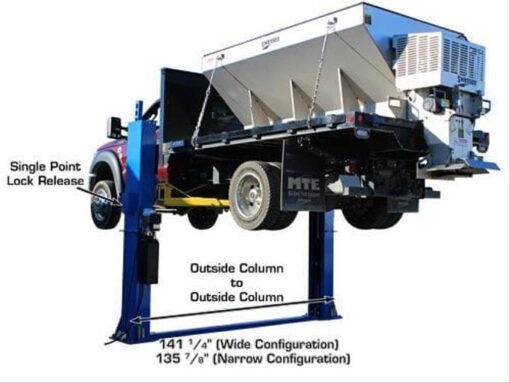

Outside Column to Outside Column
135 7/8″ (11’ 3 7/8″) or 141 1/4″ (11’ 9 1/4”)
Maximum Lift Height (Without Adapters)
77 1/2″
Maximum Lift Height (With Adapters)
88 1/2″
Minimum Arm Height
4″
Inside Column
118 1/8” (9’ 10 1/8”) or 123 1/2″ (10’ 3 1/2″)
Drive Thru
103 5/8” (8’ 7 5/8”) or 109” (9’ 1”)

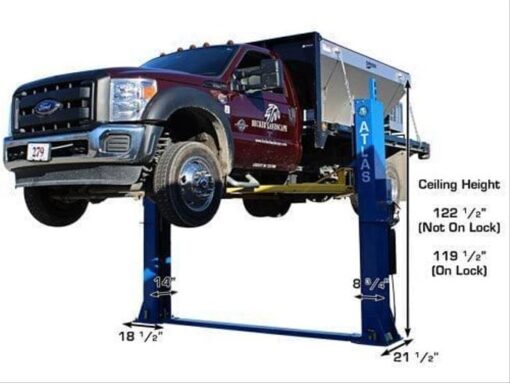

Column Size
8 3/4″ x 14″
Column Thickness of Steel
6mm
Base Of Lift
18 1/2″ x 21 1/2″
Motor/Electrical Requirement
220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight
2,130 LBS.
Adapter Heights
4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size
1.5”
Requires a minimum of 6″ of concrete with a 3000 psi. rating
