ASEplatinum TP15KCX Heavy-Duty Clear Floor Two Post Lift

4 in stock

Description
ASEplatinum TP15KCX Heavy-Duty Clear Floor Two Post Lift
15,000 lbs. Capacity with Symmetric Arms
UPDATED FEATURES! A Texas style two post floor plate lift with 12,000 lbs. lifting capacity, large twin 3″ cylinders with low friction chain rollers and a “big foot” base plate for extra stability. Built rugged for trucks, but now with low profile arms to reach under smaller passenger cars. This thing is a beast. It can handle the big jobs with ease.
A fresh new design and upgraded features for the TP15KCX Two Post Clear Floor truck and vehicle Lift now comes standard with low profile ‘drop-in’ adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with kill switch and reduced overall width with rubber door guards to protect vehicle from dings and scratches. The newly designed heavy-duty lift model with added features makes it one of the best values in the lift industry market. Professional quality with an economical price.
NEW Updated Design & Features
- Extended Overall Height
- Padded ‘Shut-Off’ Bar with kill switch

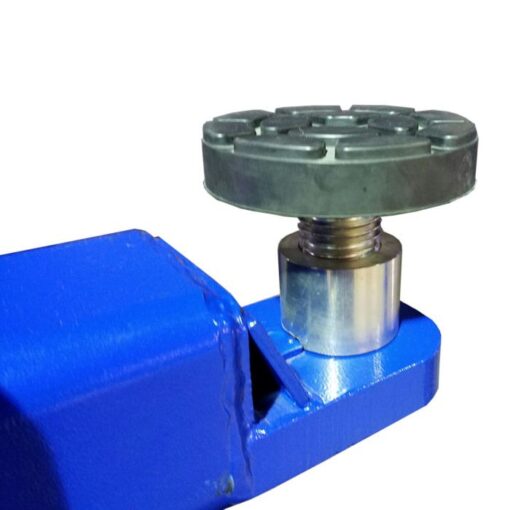

- Low Profile ‘drop-in’ swivel pads 2″ adjustable height

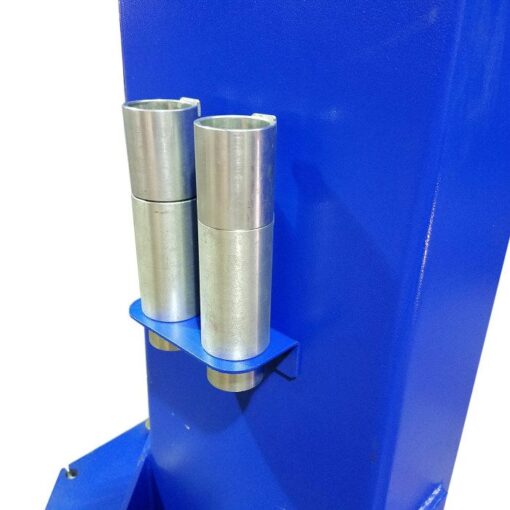

- Stackable 3″ & 5″ ‘drop-in’ height adapters (4 of each)

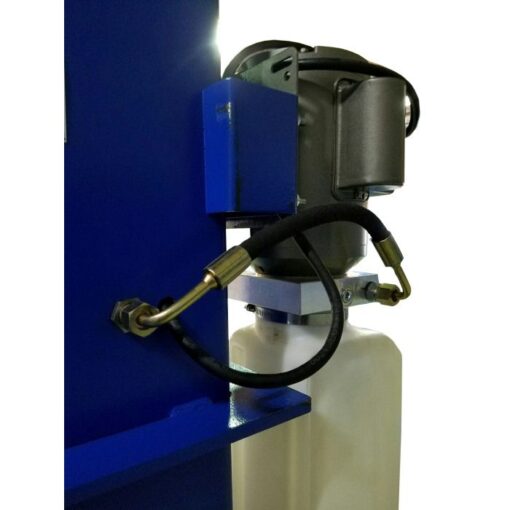

- Internal Hose Routing with integrated hose guards
- Rubber Door Guards
- Reduced overall width with front-side power unit mounting
- Anti-spread gussets built into columns
Standard Features
- 15,000 lbs. lifting capacity
- Symmetric design
- Chain driven
- Dual 3″ cylinders with low friction chain rollers
- “Big Foot” base plates for extra stability
- Low profile arm restraints
- Durable powder coat paint finish
- Free hardware
- Powder coat paint finish

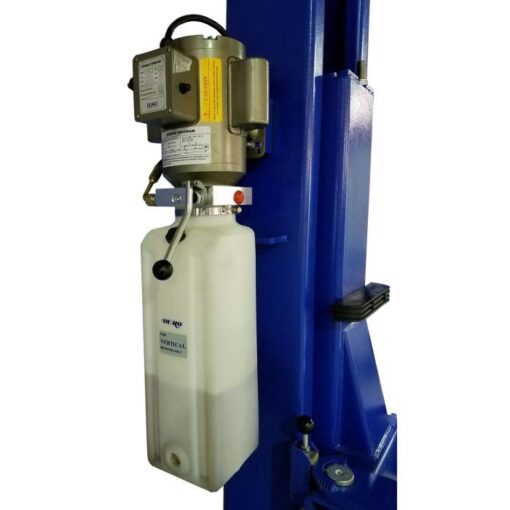

- American made power unit
ASEplatinum offers a wide variety of garage equipment, but they are most notable for their auto lifts. This two post lift for sale is a perfect example of why they are rapidly growing into one of the fastest up-and-coming names in lifts. Over a decade of history tells us that these lifts are ready for prime time. Professional auto shops have been using and abusing these lifts for years and are raving about them. They offer professional features and quality along with a reliable time tested design, at an affordable price. If you’re looking for a true commercial quality car hoist at a reasonable price, this is it. Durable hydraulic cylinders in each column work in a direct drive lifting system for maximum efficiency. High strength equalizer cables with commercial quality pulleys make sure that both sides stay synchronized. You can find cheaper models out there, but you won’t find a better model at anywhere near this price.
Features and Specs
Features
- 15,000 lbs. lifting capacity
- Symmetric design
- Chain driven
- Dual 3″ cylinders with low friction chain rollers
- “Big Foot” base plates for extra stability
- Low profile arm restraints
- Durable powder coat paint finish
- Free hardware
- Powder coat paint finish
- American made power unit
- Extended Overall Height
- Padded ‘Shut-Off’ Bar with kill switch
- Low Profile ‘drop-in’ swivel pads 2″ adjustable height
- Stackable 3″ & 5″ ‘drop-in’ height adapters (4 of each)
- Internal Hose Routing with integrated hose guards
- Rubber Door Guards
- Reduced overall width with front-side power unit mounting
- Anti-spread gussets built into columns
Specifications
- Capacity: 15,000 lbs.
- Overall Height: 180″
- Width Overall: 156-1/2″
- Max Lift Height: 80-1/2″
- With Tallest Adapter: 87″
- Width Between Columns: 121-1/2″
- Low Pad Height: 5″
- Drive thru Clearance: 109″
- Lifting speed: 45 sec
- Asymmetric / Symmetric: Symmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach – min/max: 37″ – 52-1/2″
- Long Arm Reach – min/max: Same
- Cable Diameter: 3/8″
- Column Size: 7-3/4″ x 12-1/2″
- Column Steel Thickness: 8mm
- Carriage Steel Thickness: 8mm
- Arm Steel Thickness: 8mm
- Shipping Weight: 2,590 lbs.
- Power: 220V – 20 AMP – 1 PH
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
