APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty – AP-12SR

Sale!51%
Original price was: $4,470.00.Current price is: $2,190.00.
This item: APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty – AP-12SR
Original price was: $4,470.00.Current price is: $2,190.00.
Original price was: $4,470.00.Current price is: $2,190.00.
1 × APLUSLIFT HW-10KOH-A 10000 LB 2-POST OVERHEAD HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY

3 in stock

Original price was: $2,760.00.Current price is: $1,329.00.
1 × TRIUMPH C-7000 7000Lbs Adaptable 2 Post Auto Lift Car Hoist Movable
Original price was: $2,345.00.Current price is: $970.00.
1 × Maxjax m6k portable two-post garage lift – supreme package
Original price was: $4,351.58.Current price is: $1,299.99.
1 × Atlas Platinum PVL9BP ALI Certified 9,000 lb Baseplate Lift
Original price was: $4,399.00.Current price is: $1,199.00.
people have this in their carts right now. It's running out!
Guaranteed safe & secure checkout

Flash Sale end in:

00
:
00
:
00
:
00
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  10-21 DAY DELIVERY  Jul 19 Jul 26
Call Us anytime
Description
Reviews (0)
  • Industry leading 3 YEAR WARRANTY
  • Single Point Safety Lock Release System
  • Two Set of 3″ and 6″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
  • CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
  • All Robot Welded Structure with Durable Powder Coated Finish

APlusLift AP-12SR is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.

We are proud to offer an industry leading 3 year warranty for all parts ! We have all replacement and optional parts available for our lifts.

Free shipping to lower 48 states



Specifications
Model AP-12SR
(This Model)		 AP-10SR
(for Comparison)
Manual AP-12SR Manual AP-10SR Manual
Style Overhead Overhead
Lock Release Single Point Release Single Point Release
Warranty 3 Years (36 Months) 3 Years (36 Months)
Lifting Capacity 12,000 LB 10,000 LB
Overall Height 165″ 143 3/16″
Overall Width 149″ 134 5/16″
Maximum Lift height with Truck Adapters 79″ 81″
Maximum Lift height without Truck Adapters 70″ 75″
Minimum Height of Adjustable Pads from Ground 4″ 4″
Drive Through Width (Carriage to Carriage) 109″ 100″
Column to Column Width 123″ 109″
Column Cross Section 14 3/8″L x 7 13/16″W 11″L x 7″W
Driving Mode Dual hydraulic cylinders, direct drive Dual hydraulic cylinders, chain drive
Motor 220V Single Phase 4HP (recommend a 30A breaker) 220V Single Phase 3HP (recommend a 30A breaker)
Hydraulic Oil 3-5 gallons AW32/AW46 (Not Included) 3-5 gallons AW32/AW46 (Not Included)
Time to full rise 75 seconds 50 seconds
Shipping Weight 2500 LB 1400 LB and 120 LB
Shipping package size 117″L x 22″W x 50″H
  • 113″L x 22″W x 40″H (Car Lift)
  • 38″L x 17″W x 14″H (2ft Height Extension Crate)
Arm Assembly Symmetrical Arm Assembly Combo (Symmetrical and Asymmetrical) Arm Assembly
Front Arms Straight Front 3 Stage reach from 37 1/2″ to 72 3/16″ Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″
Back Arms Straight Rear 3 Stage reach from 37 1/2″ to 72 3/16″ Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
Column Steel Thickness 1/4″ 13/64″
Carriage Steel Thickness 1/4″ 15/64″
Carriage Yoke Thickness 3/4″ 9/16″
Arm Steel Thickness 5/16″ 15/64″
Base Plate Steel Thickness 13/16″ 5/8″

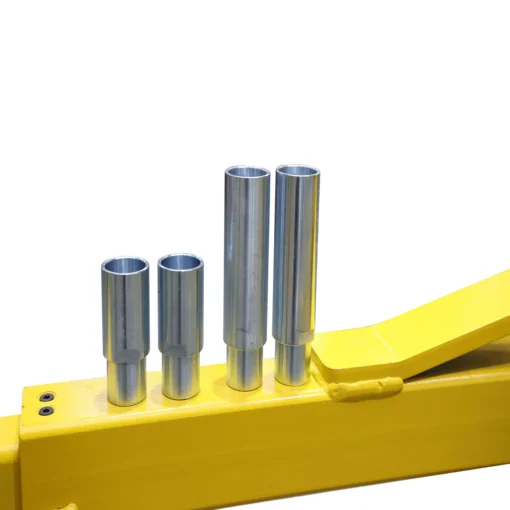

Truck Adapters (Height Extensions) Two Sets: 3″ Tall and 6″ Tall One Set: 4″ Tall
Other Parts Included

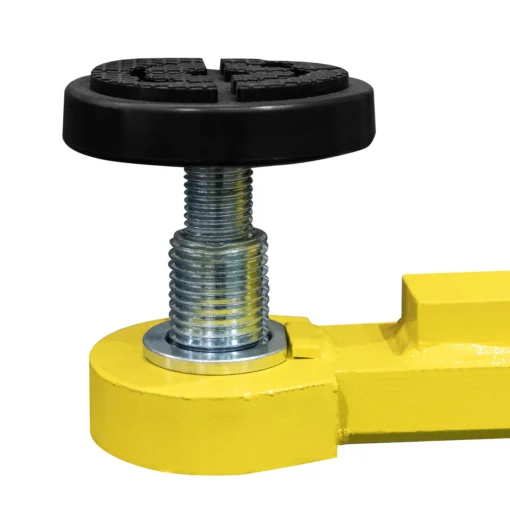

  • 4 adjustable screw pads
  • 10 anchor bolts
  • 10 shims
Optional Parts 2 3/4″ and 6″ Tall Truck Adapters
Concrete Requirement 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)

Features

  • Direct drive mode
  • Durable hydraulic system
  • Easy to operate and maintain
  • Single point safety lock release
  • Double Seal Rings Protecting PU Material
  • Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
  • Lifting operation by pressing “UP” button on motor

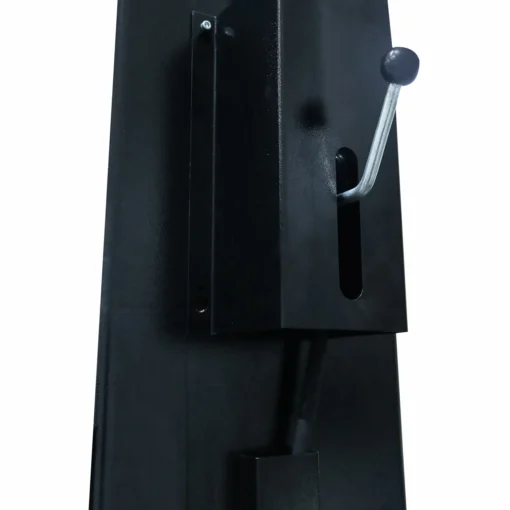

  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading
  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading

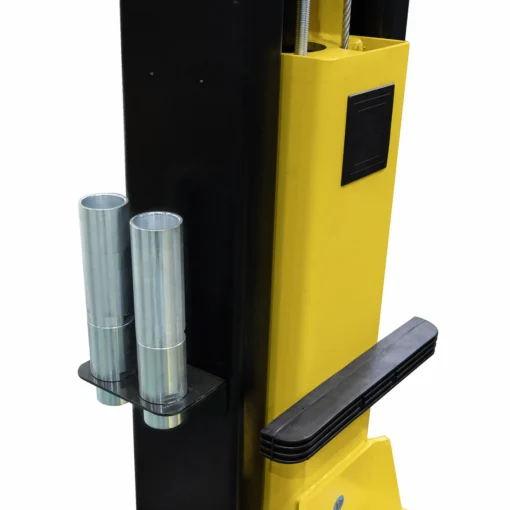

  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope

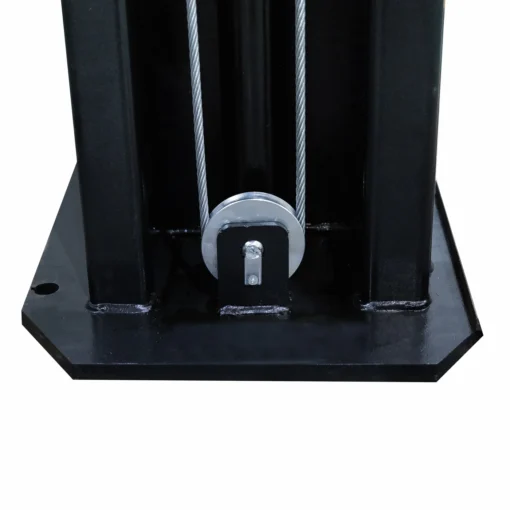

  • Heavy duty 3/8″ diameter cable and 4 5/16″ pulley that reduce high stress on synchronization process and increase cable life
  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
